Inductors and Reactors

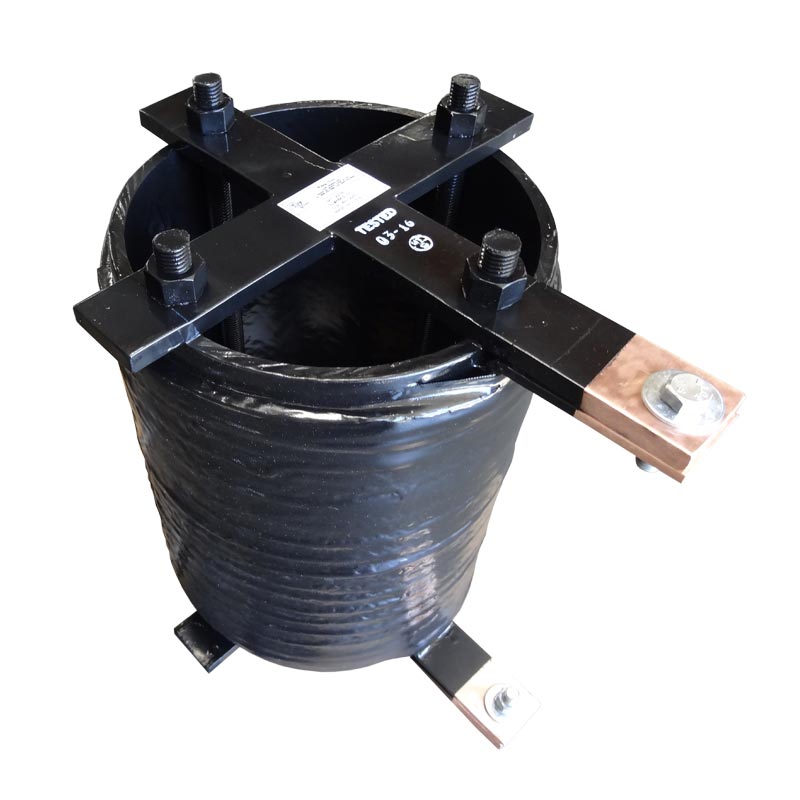

MT-2276: Air core reactor

Inductance = 40uHy

Rated current = 225A (20kA for 0.5sec)

Max rated voltage = 15kV

Approximate dimensions:

Length = 22.50"

Width = 25.00"

Height = 24.00"

Weight = 525lbs.
