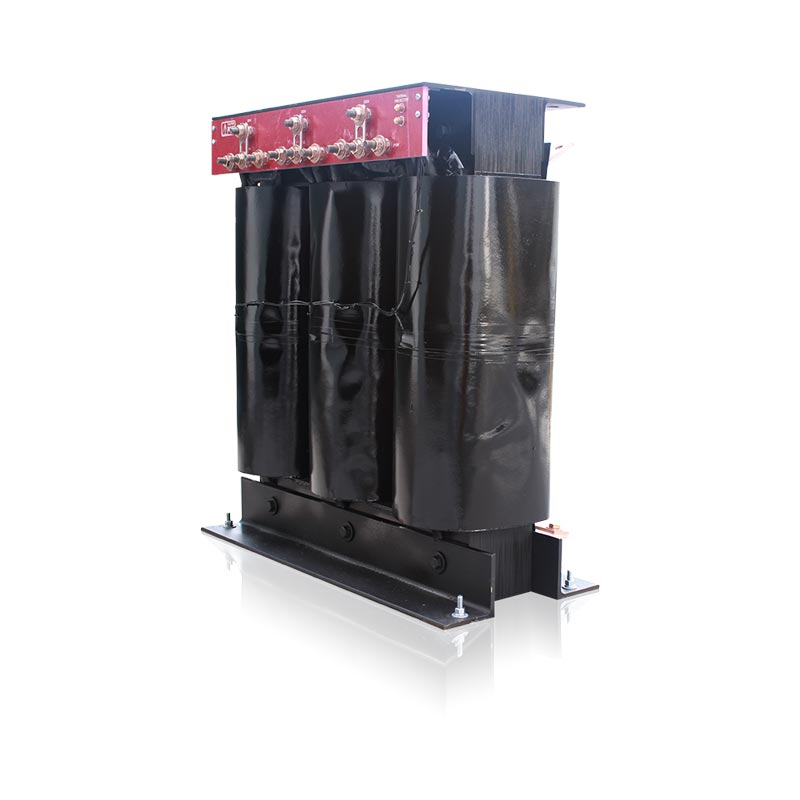

QTE 6658: 150kVA open frame transformer used in semiconductor capitol equipment
Power rating = 150kVA
Frequency = 50/60Hz
Number of Phases = 3
Primary = 210/200/190Vrms
Secondary = 208 Wye /120Vrms @ 416Arms
Depth = 13.56" Ref.
Length = 30.00" Ref.
Height = 32.00"
Weight = 1350.00lbs.
About this part:
- This transformer was designed for use in semiconductor manufacturing equipment by one of the world's leading chip producers.
- This unit carriers the rating for NRTL to UL 1561 and the CE Mark under license number EN 60076. A copy of our certifications can be found here.
- This transformer has primary voltage taps.
