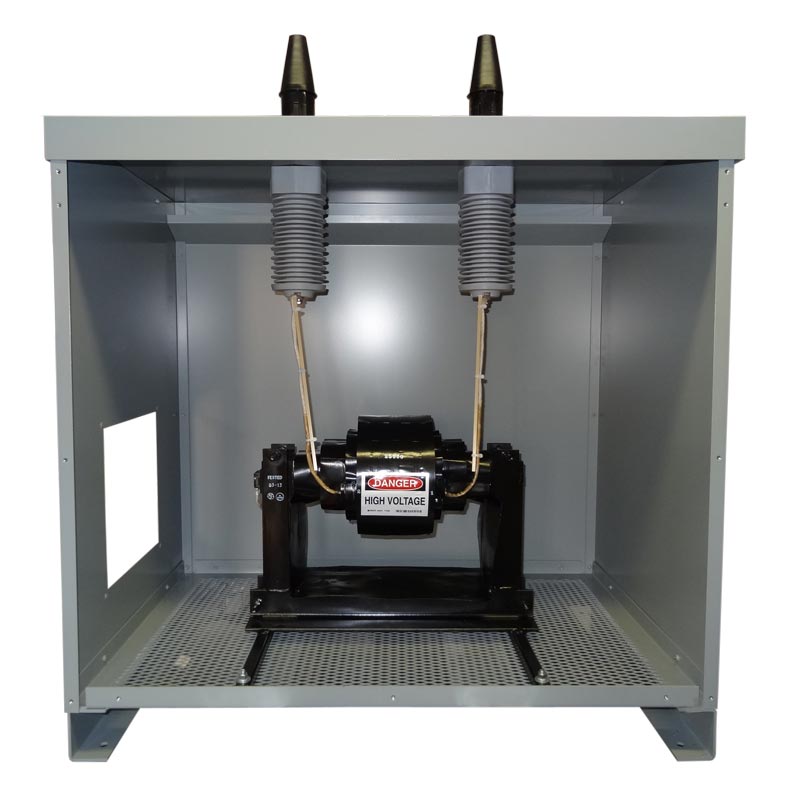

MT-4667: 1kVA high voltage transformer used in power distribution switchgear
Power rating = 1kVA
Frequency = 60Hz
Number of Phases = 1
Primary = 480Vrms Wye L-L, ±5, 10% taps
Secondary = 4,700Arms Delta L-L @ 12.3Arms
Dielectric withstanding voltage: Primary = 50kVrms, Secondary = 2.5kVrms
Impedance = 10%
Transformer:
Depth = 10.50"
Length = 23.00"
Height = 18.00"
NEMA3R enclosure:
Depth = 37.00"
Length = 42.50"
Height = 41.00"
Weight = 150lbs.
About this part:
- This unit is housed in a NEMA3R enclosure
