MT-4816: 3x 2,000VA high voltage transformers

Power rating = 3x 2,000VA

Frequency = 1,000-5,000Hz

Number of Phases = 3

Primary = 120Vrms, 1PH

Secondary = 5kVrms @ 0.40Arms

Dielectric withstanding voltage: Primary = 2.5kVrms, Secondary = 10kVrms

Regulation = 2.5%

Insulation class = 200oC

Temperature rise = 115oC

Transformer:

Depth = 5.34"

Length = 8.00"

Height = 5.25"

NEMA1 enclosure:

Depth = 18.00"

Length = 32.00"

Height = 14.50"

Weight = 100lbs.

About this part:

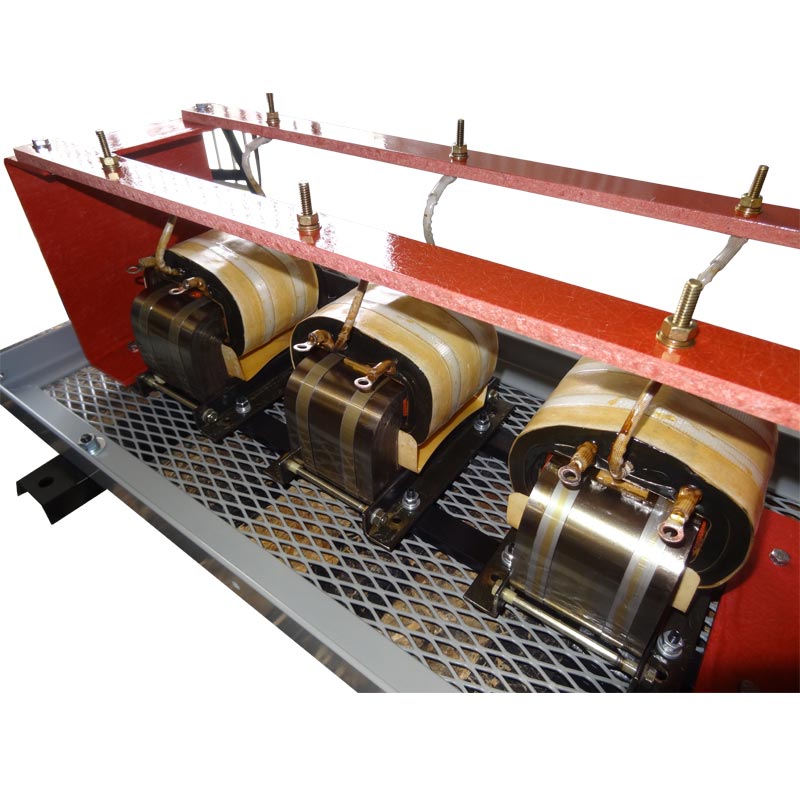

  • The coils are epoxy endfilled.

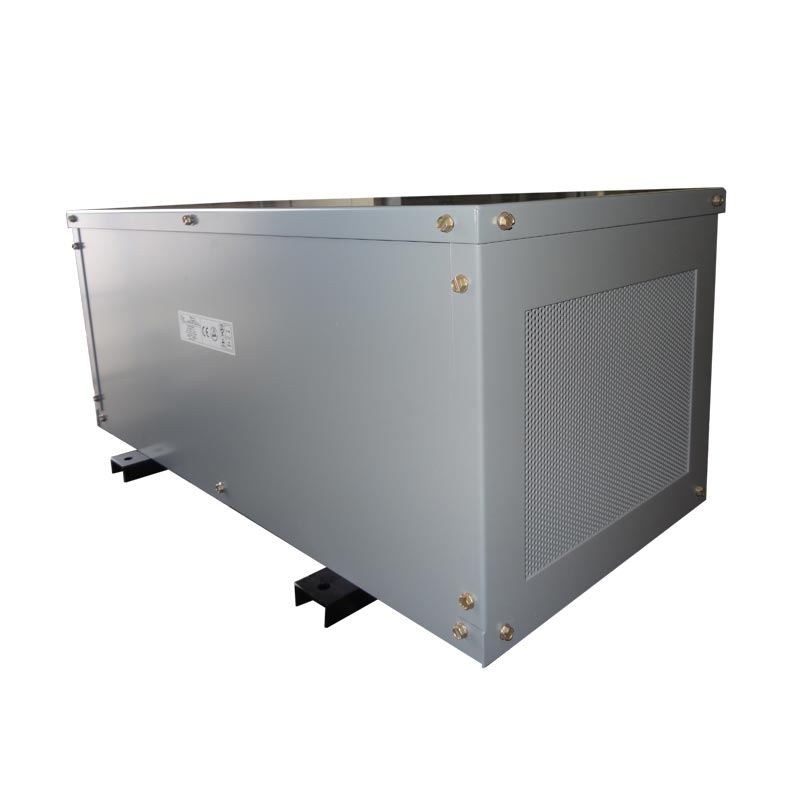

  • This unit is housed in a NEMA1 enclosure
  • This unit carries CE Mark, CUS, and NRTL to UL 506 certification and label.
