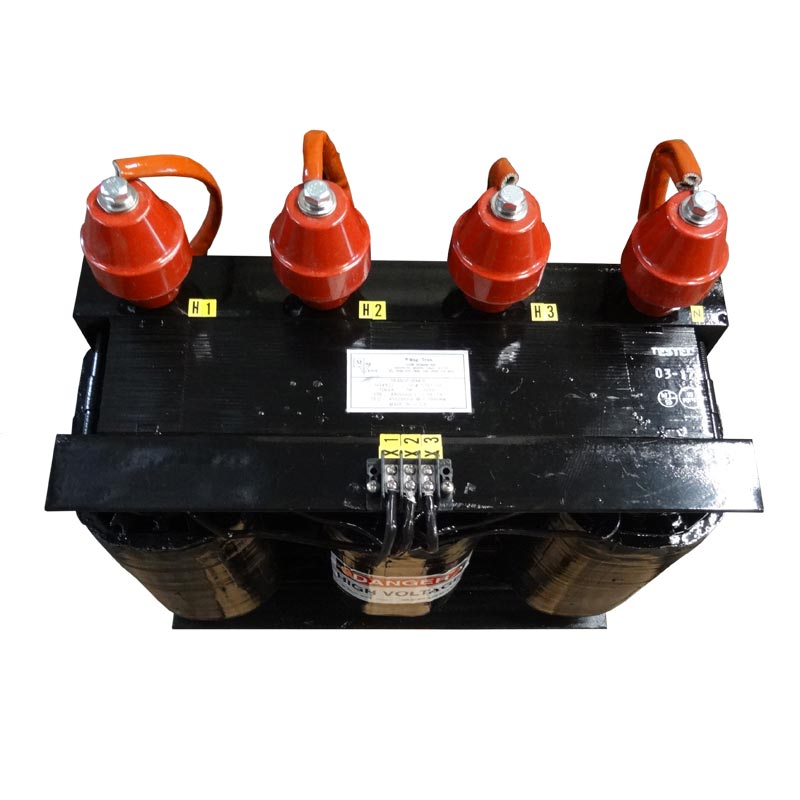

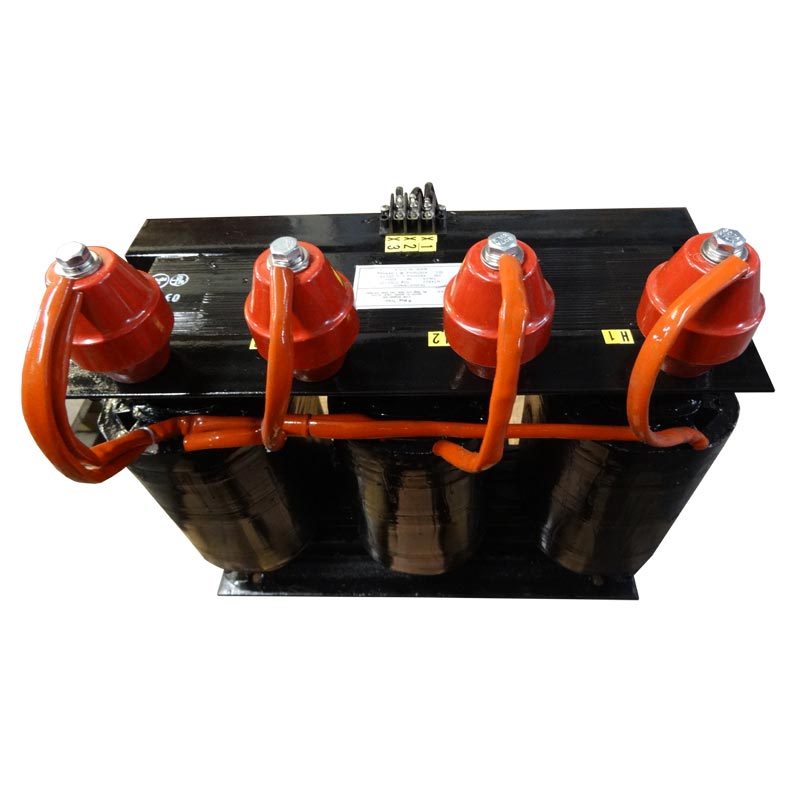

MT-4922: High voltage isolation transformer used in a high speed rail application
Power rating = 10kVA
Frequency = 60Hz
Number of Phases = 3
Primary = 480Vrms Delta
Secondary = 4,160Vrms Wye @ 1.39Arms
Dielectric withstanding voltage: Primary = 5kVrms, Secondary = 12kVrms
Transformer:
Depth = 10.50"
Length = 20.25"
Height = 18.25"
Weight = 190lbs.
